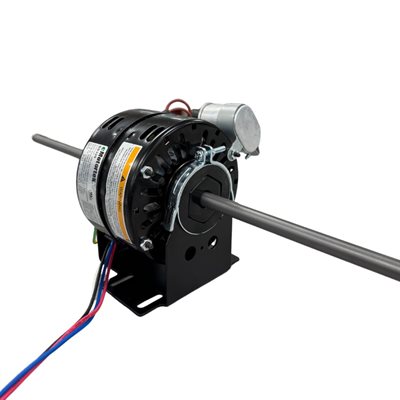

MOTOR D / S 1 / 15 230 1050 3SPD. BASE W / CAP

Press and move to zoom.

Mouse over image to zoom.

Click to enlarge

MOTOR D / S 1 / 15 230 1050 3SPD. BASE W / CAP

Product Code: SS320

Class B Insulation, Resilient Base, Double Shaft

Contact us for pricing

Type : Permanent Split Capacitor
HP : 1/15
Voltage : 208-230
RPM : 1050
Current (Amp) : 1.30
Phase : 1
Rotation : Counterclockwise Lead End
Frame : 42
Enclosure : Open
Speeds : 3
Protector : Automatic
Ambient Temp : 40°C
CFM : N/A
Service Factor : 1.00
Shaft Dimensions : 1/2 in X 8.2 in
Frequency : 60Hz
Diameter : 5.0 in
Frame Length : 3.31 in
Bearings : Sleeve
Capacitor Rating : 3-370

Availability: In stock
